Rearranging Column Order

When viewing a report in White Cup BI, the column order can be changed in one of two ways. The first is to drag and drop the column using the handle in the column header. The second is to drag and drop the column using the handle in the Columns tool.

To change the column order using the handle in the column header, start by opening a report to view it.

At the top of each column are three dots. These dots are the column handle. Click the three dots with your mouse and drag the column to the new desired position. Release the mouse button to drop the column into its new location.

To change the column order using the Columns tool, start by opening a report to view it and clicking the Columns button in the menu.

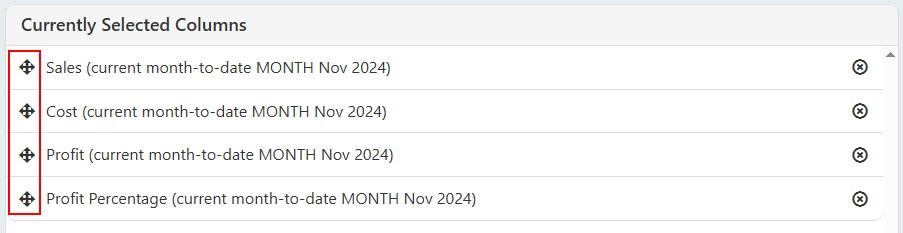

On the right side of the page is a section labeled Currently Selected Columns. As the name implies, is shows the columns on the report right now. If you add columns from the Available Columns tool on the left, they will be added to this list on the right. The columns in the Currently Selected Columns section display the columns in order of top to bottom / left to right. The top column in the list will be the left-most column when viewing the report. The bottom column will be the right-most column when viewing the report.

To change the column order, click the four arrow handle to the left of the column name in the Currently Selected Columns section and drag the column to the desired location. Release the mouse button to drop the column into its new location.
